5mm Air Blown Fiber Microduct Crush 1000N Fiber Optic Microduct

Product Details

Place of Origin: CHINA

Brand Name: HYOC

Certification: ISO9001

Model Number: DUCT

Payment & Shipping Terms

Minimum Order Quantity: 10KM

Price: ≥80USD/KM

Packaging Details: Wooden drum or iron drum

Delivery Time: 30 days

Get Best Price
Highlight:

5mm Air Blown Fiber Microduct

,

5mm fiber optic microduct

,

1000N fiber optic microduct

Material:
HDPE
Size:
Above 5mm
Color:
Customized
Tensile Strength:
Above 400N
Crush:
1000N
Material:
HDPE
Size:
Above 5mm
Color:
Customized
Tensile Strength:
Above 400N
Crush:
1000N
5mm Air Blown Fiber Microduct Crush 1000N Fiber Optic Microduct

Hot Sales factory price direct installation or direct bury micro duct HDPE microduct bundle for air blowing fiber







HUIYUAN starts with a ruggedized microduct designed to support all aerial, direct bury, and inside plant “last mile” needs. Created from the most rugged HDPE polymers, HUIYUAN's Microduct is strong enough to be placed using traditional methods of boring and plowing, allowing you to leverage your existing conduit placement equipment.

HUIYUAN's microduct is a configuration of 2, 3, 4, 6, 7, 8, 12, 19 or 24 MicroDucts, factory bundled into one package by over-sheathing them with a Polyethylene jacket.
HUIYUAN's microduct is available in many different sizes, configurations and shapes to meet your specific projects requirements.
HUIYUAN's microduct is most commonly used as a cost effective and user-friendly way to quickly install multiple pathways for fiber optic cables.



Features:

Durable
Can survive the roughest OSP environments.
Locatable, Flexible, Scalable
Lowers construction, restoration, upgrade, and maintenance costs.
Reduced Size
for pathway & components allows for smaller, higher density, fiber cables.



Standard:

HDPE of a high-molecular type with the following parameters is used for production of the Tube Bundle:
Melt flow index: 0.1 to 0.4 g/10 minutes (190 °C, 2.16 KG) EN ISO 1133
Density: Min. 0.940 g/cm3 ISO 1183
Tensile strength at yield: Min. 20MPa ISO 527
Elongation at the break: Min 350% ISO 527
Environmental stress crack resist (F50): Min. 96 hours ISO 4599



Specification:

P/N Microduct diameter
(mm)
Bundle diameter
(mm)
Nominal weight
(kg/km)
Max pull strength
(N)
Drum length
(m)
DI0535-2 5/3.5 13.4*8.4 64 620 2000
DI0535-4 5/3.5 15.5 111 1080 2000
DI0535-7 5/3.5 18.4 155 1520 2000
DI0535-12 5/3.5 23.7 233 2280 2000
DI0535-19 5/3.5 28.4 327 3200 1000
DI0535-24 5/3.5 33.4 431 4200 1000
DI1008-2 10/8 23.4*13.4 150 1450 2000
DI1008-4 10/8 27.5 248 2400 2000
DI1008-7 10/8 33.4 365 3500 2000
DI1210-2 12/10 27.4*15.4 177 1720 2000
DI1210-4 12/10 32.4 293 2800 2000
DI1210-7 12/10 39.4 432 4200 2000
DB0535-2 5/3.5 16.0*11.0 121 1300 2000
DB0535-4 5/3.5 18.9 199 2150 2000
DB0535-7 5/3.5 21.8 258 2780 2000
DB0535-12 5/3.5 27.1 362 3900 2000
DB0535-19 5/3.5 31.8 480 5180 1000
DB0535-24 5/3.5 36.8 611 6580 1000
DB1008-2 10/8 26.8*16.8 260 2800 2000
DB1008-4 10/8 30.9 397 4280 2000
DB1008-7 10/8 36.8 545 5880 2000
DB1210-2 12/10 30.8*18.8 304 3280 2000
DB1210-4 12/10 35.8 468 5000 2000
DB1210-7 12/10 42.8 641 7000 2000

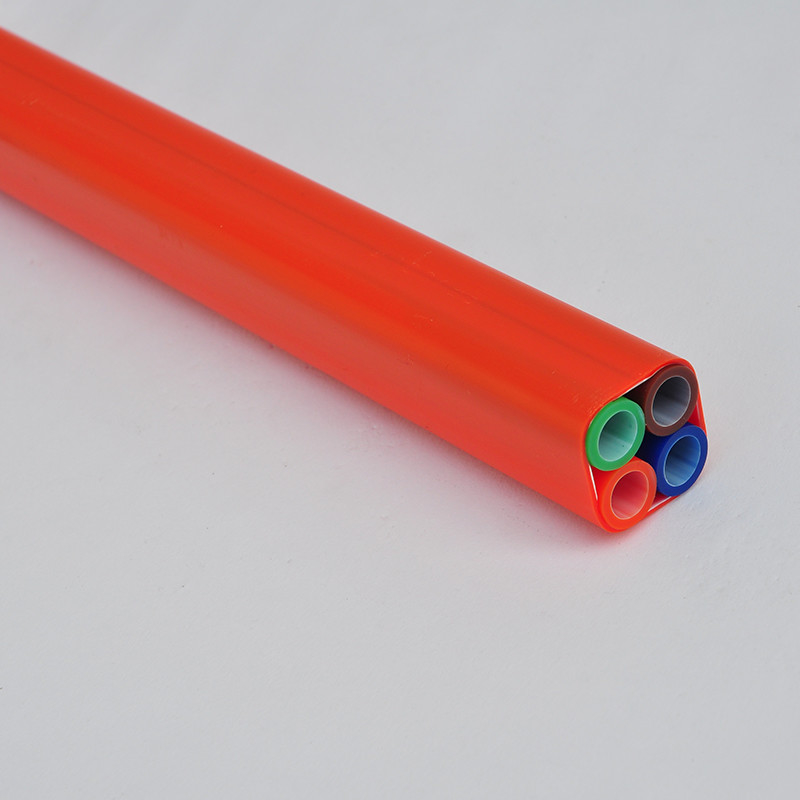

5mm Air Blown Fiber Microduct Crush 1000N Fiber Optic Microduct 0

Storage:

Completed packages of the HDPE Tube Bundle on drums can be stored outdoor max. 6 months upon the date of production.
Storage temperature: -40°C to +70°C
Installation temperature: -30°C to +50°C
Operating temperature: -40°C to +70°C
