Operation Temperature -30~+60C EPFU-2G657A1 Air Blowing Fiber Unit

Product Details

Place of Origin: China

Brand Name: HYOC

Certification: ISO9001

Model Number: EPFU-G657A1

Payment & Shipping Terms

Minimum Order Quantity: 10KM

Price: Negotiable

Packaging Details: Paper drum

Delivery Time: 20 days

Payment Terms: T/T in advance

Supply Ability: 6000km/month

Get Best Price
Highlight:

EPFU 2G657A1

,

EPFU Air Blowing Fiber Unit

,

HDPE Sheath EPFU

Attenuation @1550nm:
≤0.30dB/km
Sheath Material:
HDPE
Standard Drum Length:
4km Or 6km
UV Resistance:
Yes
Weight:
1kg/km
Model:
EPFU-2G657A1
Product Name:
Enhanced Performance Fiber Unit
Packing Size:
φ510×200 & φ510×300
Attenuation @1550nm:
≤0.30dB/km
Sheath Material:
HDPE
Standard Drum Length:
4km Or 6km
UV Resistance:
Yes
Weight:
1kg/km
Model:
EPFU-2G657A1
Product Name:
Enhanced Performance Fiber Unit
Packing Size:
φ510×200 & φ510×300
Operation Temperature -30~+60C EPFU-2G657A1 Air Blowing Fiber Unit

Product Description:

Operation Temperature -30~+60C EPFU-2G657A1 - B2B Requirements

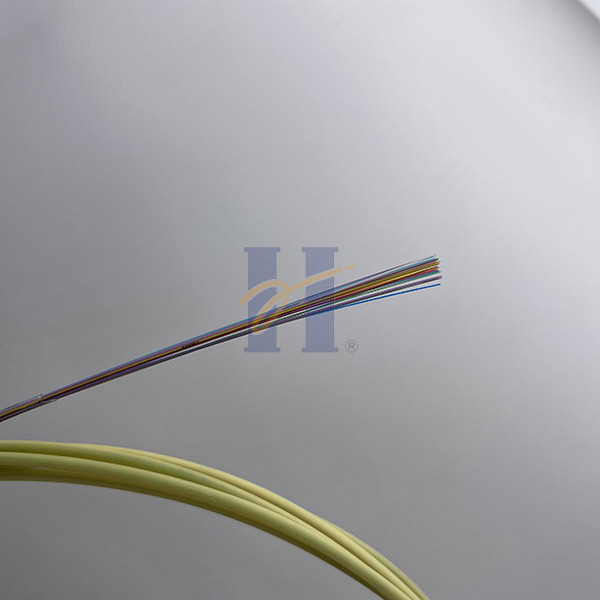

EPFU is an air blowing fiber unit with fiber optic cable inside, which is made of high density polyethylene (HDPE) sheath material for fiber to the home (FTTH) applications. It has a unique cable surface design with grooves for more efficient jetting air blown fiber installation. The unit is available in yellow color or any other customized color, and the material is UV resistant.

EPFU is the perfect solution for air blowing fiber installations. This fiber unit has the advantage of no power consumption, low installation cost and easy, fast installation. It is the ideal choice for applications where fiber to the home (FTTH) is required.

Whether for residential or commercial applications, EPFU provides the ideal solution for air blowing fiber requirements with its high-performance and reliable fiber unit. With EPFU, you can rest assured that you have the best fiber optic cable solution for your FTTH needs.



Features:

  • Product Name: EPFU
  • Application: FTTH
  • Standard drum length: 4km Or 6km
  • Max tensile: 0.5G (G=9.8*Weight)
  • Waterproof: Yes
  • Weight: 1kg/km
  • Air Blown Fiber Unit
  • Air Blowing Fiber Unit
  • Air Blown Fiber Unit


Technical Parameters:

Parameter Value
Product EPFU (Air Blown Fiber Unit)
Typical blowing distance 1000m
Fiber G657A1
Max tensile 0.5G (G=9.8*Weight)
Weight 1kg/km
Fiber count 2f
Packing size φ510×200 & φ510×300
Application FTTH
Color Yellow Or Customized
Waterproof Yes
Sheath material HDPE


Applications:

HYOC's EPFU-G657A1 Air Blown Fiber Unit is the perfect solution for fast installation and reliable connectivity for high-speed internet. With an ISO9001 certification, this air blown fiber optic cable is waterproof, features a HDPE sheath material, and has an installation temperature of -10~+50℃. EPFU-2G657A1 is available in yellow or customized colors and comes with a minimum order quantity of 10KM. With its flexible deployment and easy maintenance, this product is perfect for any business. Plus, its price is negotiable and it can be delivered within 20 days. It also has a supply ability of up to 6000km/month.



Customization:

Premium Quality Air Blown Fiber Unit (EPFU-G657A1)

HYOC is your source for premium quality Air Blown Fiber Unit (EPFU-G657A1). Our EPFU-G657A1 is certified with ISO9001 and is available in yellow or with custom coloring. It has a maximum tensile of 0.5G (G=9.8*Weight) and a blowing duct of 5.0/3.5mm. It has a packing size of φ510×200 & φ510×300.

We offer the EPFU-G657A1 in packs of 10KM and above. Prices are negotiable and your order will be delivered within 20 days. Payment terms are T/T in advance. Our supply ability is 6000km/month.

Choose HYOC for your Air Blown Fiber Unit needs and get the best quality products with unbeatable service.



Support and Services:

EPFU offers technical support and services for its products. Our support team is available to answer any technical questions or troubleshoot any issues you may have. We also provide assistance with product installation, configuration, and maintenance. We provide a variety of resources to help you get the most out of your EPFU product, including tutorials, FAQs, user manuals, and online training courses. We strive to provide our customers with the best possible support and services to ensure that they are satisfied with their products.



Packing and Shipping:

Packaging and Shipping for EPFU

EPFU is packaged and shipped in a secure, well-sealed box. The box is designed to protect the product from damage during shipping and includes the necessary documentation and instructions. It is also clearly labeled with the product name and model number.

The EPFU is shipped via a reputable shipping provider and all shipments are tracked for their entire journey. We guarantee delivery of the product in the timeframe promised.



FAQ:

Q1:What is the brand name of HYOC's EPFU product?
A1:The brand name of HYOC's EPFU product is HYOC.
Q2:What is the model number of HYOC's EPFU product?
A2:The model number of HYOC's EPFU product is EPFU-G657A1.
Q3:Where is HYOC's EPFU product from?
A3:HYOC's EPFU product is from China.
Q4:What certification does HYOC's EPFU product have?
A4:HYOC's EPFU product is certified by ISO9001.
Q5:What is the minimum order quantity for HYOC's EPFU product?
A5:The minimum order quantity for HYOC's EPFU product is 10KM.
