Product Name: |
12 Fiber G652D Micro Fiber Optic Cable Air Blowing FTTH Fiber Optic Cable Patch Panel |
Fiber Count: |
12 Fiber |
Fiber Type: |
G.652.D |
Cable Diameter: |
2.0mm±0.03mm |
Jacket Material: |
Polyethylene |
Fibre Type: |
Singlemode & Multimode |
Sheath Color: |
Support Customerized |
Installation Method: |
Microducts |
Product Name: |
12 Fiber G652D Micro Fiber Optic Cable Air Blowing FTTH Fiber Optic Cable Patch Panel |
Fiber Count: |
12 Fiber |
Fiber Type: |
G.652.D |
Cable Diameter: |
2.0mm±0.03mm |
Jacket Material: |
Polyethylene |
Fibre Type: |
Singlemode & Multimode |
Sheath Color: |
Support Customerized |
Installation Method: |
Microducts |
12 Fiber G652D Micro Fiber Optic Cable Air Blowing FTTH Fiber Optic Cable Patch Panel
Application
Air blown
Indoor wiring system
FTTx
Characteristics
Special complex material loose tube, reduce the shrink of tube in cold temperature.
Accurate fibre length balance, stable mechanical and temperature performance.
Particular technique control, prevent sheath form crinkling during installation.
HDPE jacket material enhancing the blowing performance.
Technical specification:
| Cable P/N | GCYFXY-12-2.3 |
| Fibre count | 12 |
| Jacket thickness | Nominal value: 0.20mm, Average value: 0.15mm |
| Diameter | 2.3±0.1mm |
| Cable weight | 5.0 kg/km |
| Attenuation (singlemode) | ≤0.35dB/km @1310nm, ≤0.22dB/km @1550nm |
| Tensile strength | 50N |
| Crushing | 600N/100mm |
Fiber specification:
| Characteristics | Specified Values | |
| Mode field diameter | at 1310nm | 9.2±0.4µm |
| at 1550nm | 10.4 ± 0.6mm | |
| Attenuation coefficient | at 1310nm | ≤0.40dB/km |
| at 1550nm | ≤0.30dB/km | |
| Cladding diameter | 125.0±1.0µm | |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter | 245.0±10.0µm | |
| Coating-cladding concentricity error | ≤12.0µm | |
| Coating non-circularity | ≤6.0% | |
| Core-cladding concentricity error | ≤0.8µm | |
| Curling | ≥4m | |
| Proof stress | ≥0.69GPa | |
| Coating strip force | Average value | 1.0-5.0N |
| Peak value | 1.3-8.9N | |
| Macro bending loss | Ф60mm, 100 circles, at 1550nm | ≤0.05dB |
| Ф32mm, 1 circles, at 1550nm | ≤0.05dB | |
Cable structure:

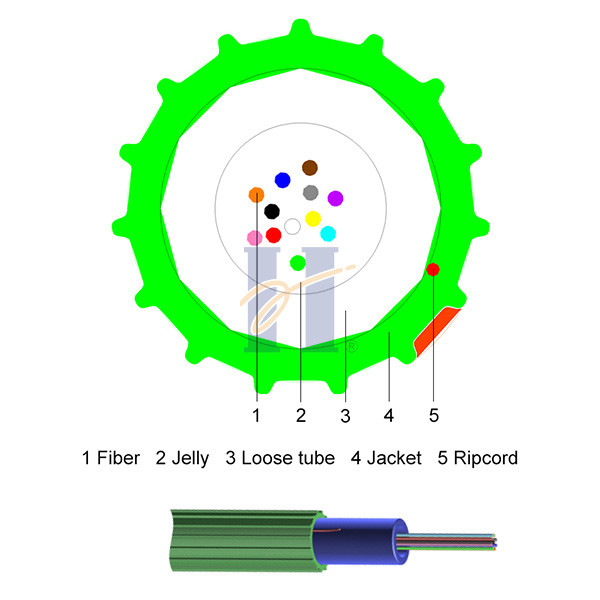

1. HDPE sheath 2. Fiber 3. Jelly 4. Loose tube 5. Ripcord
Mechanical and Environmental Characteristics
| Items | Unite | Specifications | Testing Method |
| Tension (Long Term) | N | 30 | IEC 60794-1-2-E1 |
| Tension (Short Term) | N | 60 | |
| Crush (Long Term) | N/10cm | 300 | IEC 60794-1-2-E3 |
| Crush (Short Term) | N/10cm | 600 | |
| Min. Bend Radius (Dynamic) | mm | 20D | IEC 60794-1-2-E11A |
| Min. Bend Radius (Static) | mm | 10D | |
| Operating Temperature | ℃ | -30～+50 | IEC 60794-1-2-F1 |
| Storage Temperature | ℃ | -20～+50 |
Standard drum length
2000m/drum, 4000m/drum & 6000m/drum
Fiber color: (Support customized color)
| 1 Blue |
| 2 Orange |
| 3 Green |
| 4 Brown |
| 5 Grey |
| 6 White |
| 7 Red |
| 8 Black |
| 9 Yellow |
| 10 Violet |
| 11 Pink |
| 12 Aqua |
Cable text print: (Support customized text)
HUIYUAN GCYFXTY 12 G652D [Drum No.] [Month-Year] [Meter marking]
