Product Details
Place of Origin: CHENGDU, CHINA
Brand Name: HUIYUAN
Certification: ISO9001
Model Number: MINI-12G657A1
Payment & Shipping Terms
Minimum Order Quantity: 10KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 5000km/month
Product Name: |
12 Core G657A1 GCYFXTY FTTH Fiber Optic Cable Super Mini Air Blown Micro Cable |
Fiber Count: |
12 Fiber |
Fiber P/N: |
G.657.A1 |
Cable Diameter: |
2.3mm (±0.03mm) |
Tensile Strength: |
50N |
Jacket Material: |
Natural HDPE |
Applicable Microduct: |
7.00/4.00mm |
Operation Temperature: |
-20℃ To +50℃ |
Product Name: |
12 Core G657A1 GCYFXTY FTTH Fiber Optic Cable Super Mini Air Blown Micro Cable |
Fiber Count: |
12 Fiber |
Fiber P/N: |
G.657.A1 |
Cable Diameter: |
2.3mm (±0.03mm) |
Tensile Strength: |
50N |
Jacket Material: |
Natural HDPE |
Applicable Microduct: |
7.00/4.00mm |
Operation Temperature: |
-20℃ To +50℃ |
12 Core G657A1 GCYFXTY FTTH Fiber Optic Cable Super Mini Air Blown Micro Cable
Description
Huiyuan's FTTH fiber optic cable is air blown micro duct application, especially suitable for FTTH access network. It is is small size, light weight, enhanced surface outer sheath to improve blowing performance. The outer thermoplastic layer provides a high level of protection and excellent installation properties.
Technical specification:
| Cable Type | MINI-12-2.3 |
| Fibre count | 12 |
| Sheath thickness | Nominal value: 0.20mm, Average value: 0.15mm |
| Cable diameter | 2.3±0.1mm |
| Weight | 5.0 kg/km |
| Min. Bending radius Static / Dynamic |
10 / 20 x cable diameter |
| Storage temperature | -30 to +50℃ |
| Installation temperature | -10 to +40℃ |
| Operation temperature | -20 to +50℃ |
| Cable life | 25 years |
Fiber specification:
| Characteristics | Values | ||
| Mode field diameter | at 1310nm | 8.6±0.6µm | |
| at 1550nm | 9.8±0.8mm | ||
| Attenuation coefficient | at 1310nm | ≤0.40dB/km | |
| at 1550nm | ≤0.30dB/km | ||
| Curling | ≥4m | ||
| Proof stress | ≥0.69GPa | ||
| Coating strip force | Average value | 1.0-5.0N | |
| Peak value | 1.3-8.9N | ||
| Macro bending loss | Ф20mm, 1 circles | at 1550nm | ≤0.75dB |
| at 1625nm | ≤1.5dB | ||
| Ф30mm, 10 circles | at 1550nm | ≤0.25dB | |
| at 1625nm | ≤1.0dB | ||

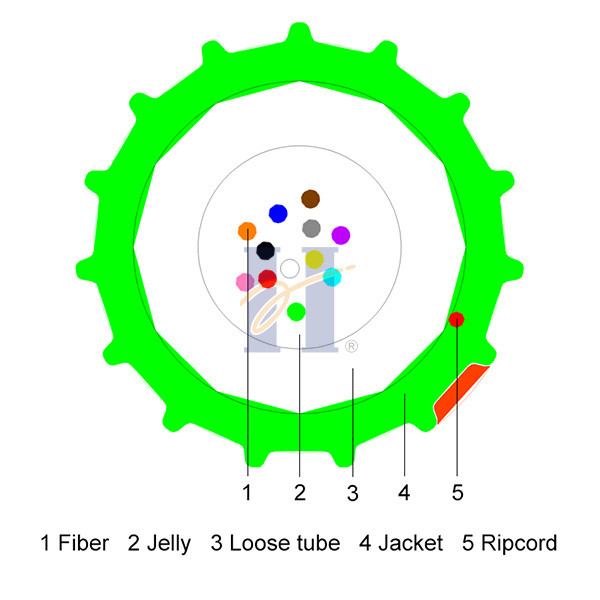

Cable structure:
1. HDPE sheath 2. Fiber 3. Jelly 4. Loose tube 5. Ripcord
Standard drum length
2000m/drum, 4000m/drum & 6000m/drum
Fiber color: (Support customized color)
| Fibre No.1 = Blue |
| Fibre No.2 = Orange |
| Fibre No.3 = Green |
| Fibre No.4 = Brown |
| Fibre No.5 = Grey |
| Fibre No.6 = White |
| Fibre No.7 = Red |
| Fibre No.8 = Black |
| Fibre No.9 = Yellow |
| Fibre No.10 = Violet |
| Fibre No.11 = Pink |
| Fibre No.12 = Aqua |
Cable text print: (Support customized text)
HUIYUAN GCYFXTY 12 G657A1 [Drum No.] [Month-Year] [Meter marking]
Order information
| Number of fibres | Fibre class | Part name |
| 12 | G657A1 | GCYFXTY 1X12 G657A1 2.30MM |
| 12 | G652D | GCYFXTY 1X12 G652D 2.30MM |
| 12 | OM1 | GCYFXTY 1X12 OM1 2.30MM |
| 12 | OM2 | GCYFXTY 1X12 OM2 2.30MM |
| 12 | OM3 | GCYFXTY 1X12 OM3 2.30MM |
| 12 | OM12 | GCYFXTY 1X12 OM12 2.30MM |
